Wire EDM (Electrical Discharge Machining) is a non-contact cutting process that uses electrical sparks to erode material. Unlike traditional machining, which relies on physical force, Wire EDM employs a thin, electrically charged wire to make precise cuts. This process allows manufacturers to create intricate shapes and detailed components that would be difficult or impossible to achieve with conventional tools.
Mang industries rely on Wire EDM cutting for its ability to cut extremely hard materials with high accuracy. Since the wire never touches the workpiece, there’s no mechanical stress, making it ideal for delicate and high-precision parts. It also produces a smooth finish, reducing the need for additional machining or polishing.
For beginners, understanding how Wire EDM works and its advantages can help in choosing the right applications and maximizing efficiency. This guide will cover the fundamentals, including how the process works, key benefits, and essential considerations for getting started.

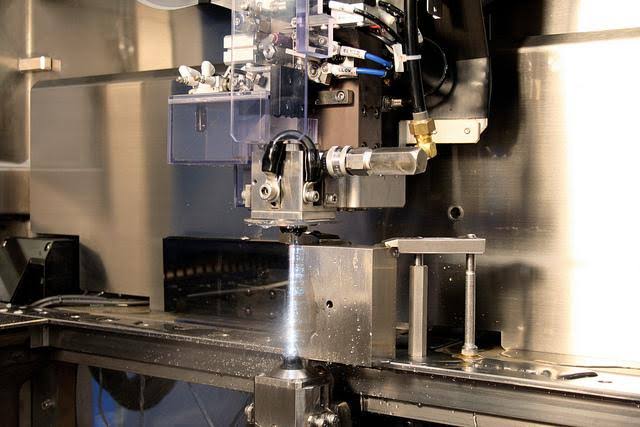

Understanding Wire EDM Cutting
Wire EDM (Electrical Discharge Machining) is a specialized manufacturing process that uses electrical energy to cut through conductive materials with extreme precision. Unlike traditional cutting tools, which rely on force and sharp edges, Wire EDM removes material using controlled electrical discharges.
The process involves a thin, continuously moving wire—often made of brass or coated with zinc—that carries an electric charge. When the wire approaches the workpiece, electrical sparks jump between them, generating intense heat that vaporizes small sections of the metal. Because this process does not involve physical contact, there is no risk of mechanical distortion or tool wear, making it perfect for cutting delicate or hardened materials.
Wire EDM is widely used in industries that require high precision, such as aerospace, medical device manufacturing, and tool and die making. It is especially useful for creating complex shapes, fine details, and intricate patterns that would be difficult or impossible to achieve with traditional machining methods. Additionally, since the process produces a smooth finish, parts often require little to no post-processing.
What is Wire EDM Cutting?
EDM (Electrical Discharge Machining) is a precision cutting process that uses electrical sparks to remove material from a workpiece. It employs a thin, electrically charged wire—usually made of brass or zinc-coated copper—as an electrode to cut through metal without physical contact. This makes it ideal for machining hard materials and intricate designs that traditional cutting tools struggle to achieve.
The process works by submerging the workpiece in a dielectric fluid, usually deionized water. When the charged wire moves close to the metal, an electrical discharge occurs, generating intense heat that vaporizes small portions of the material. Since there is no direct contact, Wire EDM prevents mechanical stress, deformation, or tool wear, ensuring high precision and smooth surface finishes.
Manufacturers use Wire EDM for complex parts in industries such as aerospace, medical, automotive, and tool and die making. It is particularly useful for cutting hardened metals, fine details, and tight tolerances. Whether for creating prototypes or high-precision components, Wire EDM stands out as a reliable method for achieving complex cuts with minimal material waste.
Key Components of Wire EDM Machines
Wire EDM machines consist of several essential components that work together to ensure precision cutting. Each part plays a key role in maintaining accuracy, efficiency, and smooth operation. Below are the eight key components of a Wire EDM machine, along with their functions and importance.
Wire Electrode
The wire electrode is the cutting tool in a Wire EDM machine. It is usually made from brass, copper, tungsten, or zinc-coated materials and has a very fine diameter, typically ranging from 0.1 mm to 0.3 mm. Unlike traditional cutting tools, the wire never touches the workpiece directly. Instead, it generates controlled electrical sparks that vaporize the material, creating precise cuts.
The wire is continuously fed from a spool to ensure a fresh cutting edge at all times, preventing wear-related inaccuracies. Choosing the right wire material and diameter is crucial for optimizing cutting speed, accuracy, and surface finish.
Dielectric Fluid
Wire EDM machines use dielectric fluid, typically deionized water, to facilitate the cutting process. This fluid serves multiple essential functions:
- Cooling: The high temperatures generated by electrical sparks can cause overheating. The dielectric fluid cools both the wire and the workpiece to prevent thermal distortion.
- Flushing: It removes debris and eroded particles from the cutting area, ensuring a smooth and precise cut.
- Electrical Insulation: It controls the electrical discharge, allowing sparks to occur only in precise locations.
Maintaining clean dielectric fluid is essential for consistent cutting performance. Contaminated or degraded fluid can reduce precision and increase wear on machine components.
Power Supply Unit
The power supply unit controls the electrical discharges that drive the Wire EDM process. It regulates key parameters such as:
- Voltage and Current: Determines the strength of the electrical discharge, affecting cutting speed and finish.
- Pulse Frequency: Controls how often sparks are generated, which influences precision and material removal rate.
- On-Time and Off-Time: Defines how long each spark lasts and the cooling period between discharges.
An optimized power supply setting ensures efficient material removal while minimizing wire wear and preventing excessive heat buildup.
Worktable and Workpiece Holder
The worktable provides a stable platform for holding the workpiece securely in place during machining. Most Wire EDM machines use CNC-controlled worktables that move along multiple axes (X, Y, U, and V) to create intricate shapes and detailed cuts.
- Clamping System: Ensures the workpiece remains fixed without vibrations, which could reduce precision.
- Rotary and Tilting Tables: Some advanced machines have rotating tables for cutting complex angles or cylindrical components.
The accuracy of the worktable movement directly impacts the final precision of the cut.
Wire Tensioning System
The wire tensioning system maintains a consistent level of tension in the wire electrode as it moves through the workpiece. Proper tensioning is crucial because:
- Too much tension can cause the wire to snap, leading to process interruptions.
- Too little tension can result in deflections, causing inaccurate cuts.
Modern Wire EDM machines use automatic tension control systems to adjust tension based on cutting conditions, ensuring smooth and precise machining.
Servo Control System
The servo control system manages the movement of the wire electrode and the worktable, ensuring precise cutting paths. This system continuously adjusts the wire position to maintain the optimal gap between the wire and the workpiece for efficient sparking.
- Real-time adjustments: Ensures stable cutting performance, even with material thickness variations.
- Programmable control: Allows for the execution of complex shapes and patterns with high repeatability.
A well-tuned servo system enhances accuracy and reduces the risk of wire breakage
Wire Feeding System
The wire feeding system continuously supplies fresh wire to the cutting area, preventing worn sections from affecting accuracy. It consists of:
- Wire Spool: Holds the wire and feeds it as needed.
- Guide Rollers: Direct the wire through the machine with minimal friction.
- Waste Collection System: Disposes of used wire, preventing buildup.
Advanced machines feature automatic wire threading, allowing operators to restart the process quickly if the wire breaks.
CNC Control Unit
The CNC (Computer Numerical Control) unit is the brain of the Wire EDM machine. It processes digital instructions (G-code) to control all aspects of machining, including:
- Cutting Path: Guides the wire along the programmed design.
- Speed and Power Settings: Adjusts parameters for optimal efficiency.
- Error Detection: Identifies and corrects process irregularities.
Modern CNC units come with user-friendly interfaces, making Wire EDM programming accessible even for beginners. Operators can input CAD designs directly into the system for automated and precise cutting.
Applications of Wire EDM Cutting
Here are the common applications of wire EDM cutting:
Aerospace Industry
Wire EDM plays a crucial role in aerospace manufacturing, where precision and material integrity are critical. It is used to produce turbine blades, jet engine components, and structural parts from tough materials like titanium and Inconel. These parts require tight tolerances and smooth finishes, which Wire EDM achieves without introducing mechanical stress or heat distortion.
Medical Industry
The medical industry depends on Wire EDM for manufacturing high-precision surgical tools, orthopedic implants, and dental components. The process allows for intricate detailing and smooth surface finishes, reducing the need for secondary machining. Wire EDM is also used to produce micro-components for medical devices, ensuring accuracy in life-saving applications.
Automotive Industry
Automotive manufacturers use Wire EDM for producing high-precision parts in engines, transmissions, and braking systems. It is particularly useful for machining hardened steel and alloys used in gears, fuel injection components, and high-performance racing parts. The ability to maintain strict tolerances ensures durability and efficiency in modern vehicles.
Tool and Die Industry
Wire EDM is essential in tool and die manufacturing, where it is used to create molds, dies, and stamping tools. The process enables the production of intricate shapes and sharp corners that conventional machining cannot achieve. With Wire EDM, manufacturers can ensure high accuracy and repeatability in die and mold production.
Electronics and Semiconductor Industry
The electronics industry relies on Wire EDM to fabricate precise components for circuit boards, microchips, and connectors. The process allows for cutting ultra-thin materials and intricate patterns needed in semiconductor applications. Its ability to work with delicate materials without causing mechanical stress makes it an ideal choice for electronic manufacturing.
Jewelry and Watchmaking
High-end jewelry and watchmaking industries use Wire EDM to cut intricate designs and delicate parts from precious metals. The process allows for detailed engravings and precision cutting without damaging the material. Since Wire EDM does not apply mechanical force, it preserves the integrity of fine materials like gold, platinum, and silver.
Energy and Power Generation
The energy sector requires Wire EDM services for manufacturing parts used in power plants, including gas and steam turbines. These components require extreme precision and the ability to withstand high temperatures and pressures. Wire EDM ensures high-quality cuts with minimal material waste, making it an efficient choice for energy applications.
Conclusion
Wire EDM cutting is an essential machining process that offers unmatched precision, making it ideal for industries that require intricate designs and high accuracy. Unlike conventional cutting methods, it works without direct contact, eliminating mechanical stress and allowing for smooth, detailed cuts in even the toughest materials. From aerospace and medical applications to automotive and electronics manufacturing, Wire EDM provides a reliable solution for producing complex components with tight tolerances. Its ability to handle delicate materials and complex shapes makes it a crucial technology in modern manufacturing, ensuring efficiency, consistency, and superior quality in every application.
